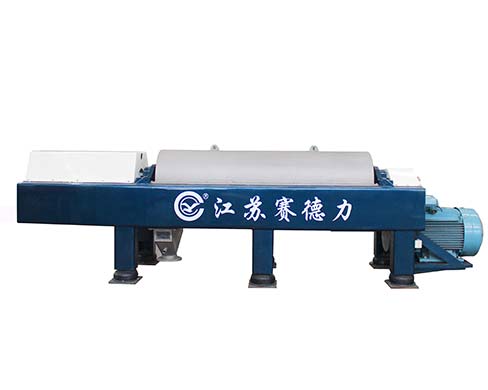

LW Decanter Centrifuge
LW Decanter Centrifuge

LW Decanter Centrifuge

LW Sedimentation Decanter Centrifuge is used in a variety of industries for separating all kinds of solid-liquid suspension, defecating liquid phase with graded grains, and dehydrating sludge such as polyoxyethylene, sulfurous acid, Barium carbonate, strontium sulfate, lidefen, titanium pigment, ore, porcelain, clay, kaolin, diatomite, amylum, soybean protein, earthnut protein, syrup, beverage, vegetable oil, citric acid, scavenge oil purification, cleansing water purification, lees, tallow, blood powder, sludge from power plants, sludge from printing and dyeing, sludge from papermaking, sludge from desulfurizing natural gas, calcium carbide sludge, activated sludge ammonia sludge, sludge from washing cars, alum sludge, drilling mud, coal flotation waste, cryolite flotation liquid and so on.

LW Decanter Centrifuge

Specification of LW Decanter Centrifuge

LW Model and Main Parameters

Item/Model

LW-250×1000

LW-350×1460

LW-450×1800

LW-520×2130

LW-650×2275

LW-720×2665

LW-900×2700

LW-1000×2500

Drum diameter (mm)

250

350

450

520

650

720

900

1000

Drum effective length (mm)

1000

1460

1800

2130

2275

2665

2700

2500

Max. Speed (r/min)

4000

4000

3600

2800

2500

2000

1500

1500

Max. Separating factor (N)

2238

3133

3265

2281

2273

1611

1133

1259

Processing capability (m3/h)

0.5-3

3-12

6-20

12-30

25-35

45-100

50-110

50-120

Main Motor power (Kw)

11

22

30-45

45-75

75-110

110-160

160-220

280

Overall dimension (mm)

2740×700

×900

3950×830

×1170

4385×1140

×1508

4760×1250

×1554

5120×1450

×1750

5500×1550

×1850

5800×1750

×2050

5600×1850

×2150

Weight (Kg)

1200

2250

3200

5600

7800

14000

19000

25000

LW Decanter Centrifuge

LW Working Principles


The decanter centrifuge machine starts and speeds up automatically. When the proper working condition are met and the revolving drum reaches the feeding speed, the feeding valve opens and allows suspension which will be separated to into the product compartment of spiral feeder through the feeding pipe. After the preliminary speed-up, suspension passes the outlet of compartment and into the drum. Because of centrifugal force, the suspension in the drum is quickly divided into two phases. The heavier solid phase deposits to the inner wall of the drum and driven by the different gear which results in the non-cynchronous movement between the spiral feeder and the drum. The solid phase will be transferred into the small end for further dehydration and finally discharged through solid phase outlet. The separated liquid flows out through the big end or will be driven out by centrifugal pump.

Highlights of LW Decanter Centrifuge

01.
Continuous working, spiral discharging, high capacity.
02.
Controlled by two motors, revolving drum can be adjustable two-stage separately.
03.
Wide applicability for chemical, oil, foodstuff, pharmacy industries and green industry in which solid-liquid separation is required.
04.
Suitable for various products, capable for separating wide-ranging solid phase grains(0.002-2mm), especially when separating solid phase has different size grains.
