JIANGSU SAIDELI PHARMACEUTICAL MACHINERY CO.,LTD.
Vertical Centrifuge Machine

Vertical Centrifuge Machine

With additional washing functions, Vertical Centrifuge machine has a better cleaning effect. A pneumatically assisted scraper is adopted to remove the remnant filter cake and the CIP system is optional to secure clarity to be in accordance with GMP Norm. A frequency control system is adopted to ensure a stable start-up. PLC is adopted to ensure complete automatic processes. No need for human supervision.

Vertical Centrifuge Machine Provided By SAIDELI


LGZ Automatic Scraper Bottom Discharge Centrifuge
L(P)GZ centrifuges have a perfect automatic performance and a large processing capacity.
View More
LLGZ Pull Bag Scraper Bottom Discharge Centrifuge
L(P)LGZ centrifuges have a perfect automatic performance and a large processing capacity. In accordance with users' demand, procedures such as feeding, separating, washing, dehydrating and discharging can all be automatically finished followed by remote control.
View More
LB Platform Hermetical Top Discharge Centrifuge
Which are in accordance with the GMP Norm and the requirement of environmental protecting, started up stably under frequency conversion control system(a clutch is another choice), the motor drives the revolving drum through a transmission system to give the drum a fast and circularize revolve, thus a centrifugal force field is generated.
View More
LBF Platform Hermetical Full Housing Open Top Discharge Centrifuge
L(P)BF series is a type of centrifuge which is suitable to high cleaning production, healthy filteration.
View More

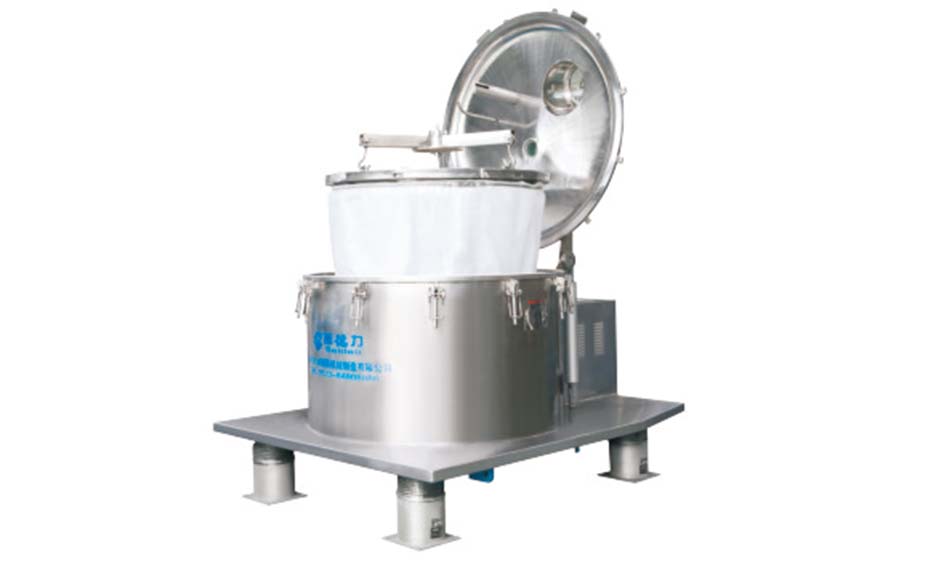

LD Bag Lifting Top Discharge Centrifuge
Platform structure, shell and plate welding as a whole, shell cover and shell body with flange quick opening structure, shell cover opening using balanced cylinder assist(spring), shell cover with feeding pipe, cleaning pipe, sight glass, observation lamp, ventilation port, etc., external connection pipe nozzles using standard flange.
View More
Most Attractive Characteristic Of

Vertical Centrifuge From SAIDELI

Vertical Centrifuge From SAIDELI
First
LGZ series full automatic scraper bottom discharge vertical centrifuge is a kind of filtration centrifuge with continuous working, and intermittent discharging by scraper. This series vertical centrifuge machine are widely used on suspension separating of middle size particle, special when the customer do not have a high requirement on solid crystal figure.
Vertical Centrifuge From SAIDELI
Second
This vertical centrifuge is a solid-liquid separation machine by centrifugal force, after the revolving drum has reached to a certain speed, the material can be distributed evenly on the wall of drum by feeding pipe, and the filter liquid is discharged by pore of filter cloth installed in the drum, then drained from the outlet pipe, and the solid is left in the drum ,after reaching a certain amount, the scraper is started to scrape the material from the drum wall.
Get Optimal Separation
Support From SAIDELI.
