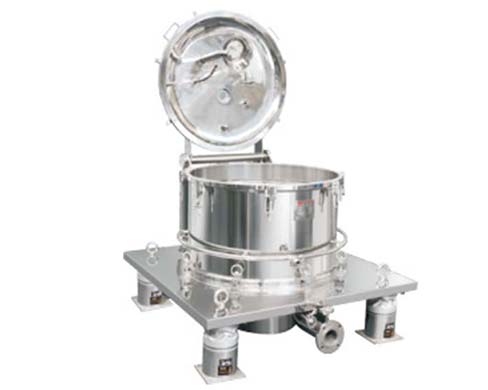

LB Platform Hermetical Top Discharge Centrifuge
LB Platform Hermetical Top Discharge Centrifuge

LB Platform Hermetical Top Discharge Centrifuge

The LB platform hermetical top discharge centrifuge enables the adjustment of the revolving speed for feeding, cleaning, and solid-liquid separation within a specific range, from 0 to the rated revolving speed.Under the effect of this top discharge centrifuge force, the material is evenly distributed on the drum wall to take off the liquid. Drilling through the gap between the solid phase material and filter net( or a filter bag), the liquid phase is thrown into the empty chamber of the shell through the drum wall hole and then discharged while the solid phase remains in the drum. Since liquid material is fed in the feeding pipeline and the washing water from the washing pipeline, there are special valves to control the feed.

LB Platform Hermetical Top Discharge Centrifuge

Specification of LB Platform Hermetical Top Discharge Centrifuge

LB Series Centrifuge Main Parameters

Item/Model

L(P)B-200

L(P)B-300

L(P)B-450

L(P)B-600

L(P)B-800

L(P)B-1000

L(P)B-1200

L(P)B-1250

L(P)B-1500

Drum diameter (mm)

200

300

450

600

800

1000

1200

1250

1500

Drum volume (L)

3

10

20

45

90

140

250

320/400

700

Drum Height (mm)

140

210

300

350

400

420

450

500/600

700

Loading capacity (Kg)

3.5

12

30

68

135

200

300

400/520

800

Drum Max. Speed (r/min)

3000

2800

2000

1600

1200/1500

1080/1200

950

900/1000

850

Max. Separating factor (N)

1007

1315

1007

860

645/1007

652/805

605

566/700

606

Motor power (KW)

0.55/0.75

1.5

3

3

5.5/7.5

11

15

18.5

22

Weight (Kg)

75

250

680

1100

1400/1500

2500

3000

3700/3900

4800

Check out our other vertical centrifuge machines.

LB Properties and Uses


Since the L(P)B series top discharge centrifuge has a good adaptability to the materials, it can be used to separate the fine grains of micron size, to dehydrate the large articles, as well as to apart all kinds of suspension that was difficult to separate. The grains are discharged manually and will not be broken at random. This type of industrial centrifuge machine is suitable for industrial materials such as gypsum, ammonium sulphide, bluestone, potassium chloride, borax, dyestuff, resin, pesticide, pharmaceutical materials such as salt, monosodium glutamate, food additive, starch, aluminum, etc, and other industries such as environmental protecting(sullage and sewage processing), etc.

LB Platform Hermetical Top Discharge Centrifuge

LB Platform Hermetical Top Discharge Centrifuge

01.
The top discharge centrifuge has a novelty structure while it is convenient for operation and maintenance.
02.
The top discharge centrifuge adopts whole sealing structure to improve the working condition and meets the requirement of GMP Norm and environmental protection. The facility is filled with Nitrogen to meet the explosion proof demand.
03.
Adopted with big cover structure, the top discharge centrifuge is convenient to discharge the material and thoroughly wash the space between the shell and drum.
04.
The lid is equipped with a mechanical balancer, so it is less labor cost and needs no energy.
05.
The top discharge centrifuge incorporates a frequency conversion system to ensure a stable start-up. Program can be predetermined to ensure a complete automatic process including feeding, filtering, washing and discharging, etc. It adopts dynamic(feedback) braking without friotion powder pollution and friction heat, so it is much safer.
06.
Since both the inner and outer surface have been polished, no dead angle exists can be achieved when a CIP cleaning system(material cleaning and machine cleaning) is available.
07.
Grains can be well preserved.
