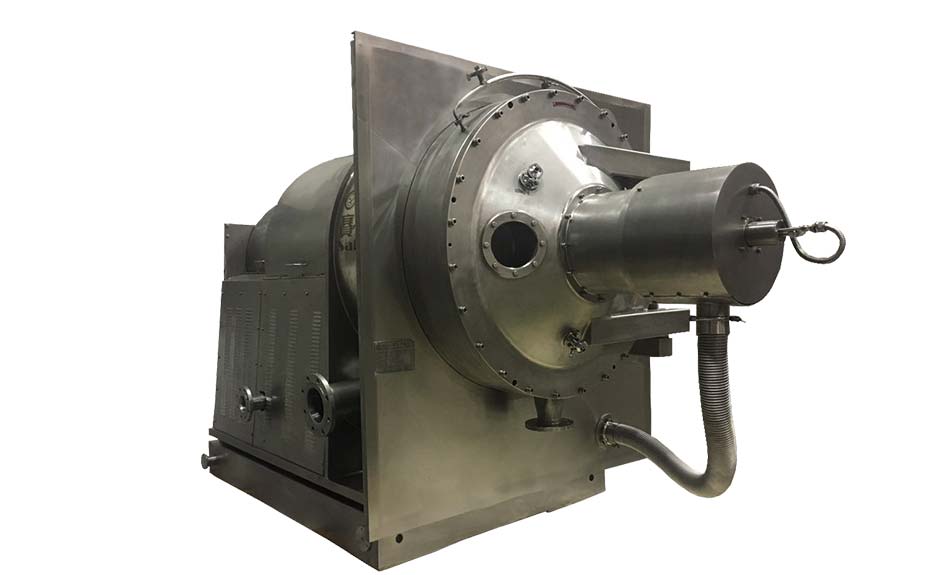

FSD Centrifugal Dryer
FSD Centrifugal Dryer

FSD Centrifugal Dryer

This centrifugal drying machine integrates separating, drying, sterilization, with a perfect seal system, absolute security and is particularly suitable on high potency compounds, pharmaceutical output stages, highly toxic products, application methods, agents that have to be manufactured in a sterile environment, and products sensitive to oxygen.


FSD Centrifugal Dryer

FSD Centrifugal Dryer Specification

FSD Centrifuge Dryer Main Parameters


Standard Model

FSD-400

FSD-600

FSD-800

FSD-1000

FSD-1300

Drum diameter (mm)

400

600

800

1000

1300

Max. Filling volume (L)

20

63

125

235

800

Filter area (m2)

0.38

0.85

1.26

1.89

2.4

Rotating speed (r/min)

1640

1340

1160

1040

900

Separating factor (N)

601

602

602

605

600

Length×Width×Height

3200×1400
×1700

3400×1600
×1900

3900×1800
×2400

4000×1800
×2500

5600×2000
×2800

Weight (Kg)

3500

4300

9500

11500

20500



FSD Centrifugal Dryer Machine Working Process

The suspension will enter into the rotating drum through the feeding pipe and the whole procedure will be monitored. The suspension will form a filter cake on the filter cloth and the mother liquid will be drained through the filter cloth. As the horizontal centrifuge machine, the filter cake will have an even structure. Usually, the filter cake will be washed after feeding. Under high speed centrifugal separation, mother liquid and washing liquid will be drained and the speed can be adjusted according to the material. After drying, the reduction of the speed will cause the collapse of the filter cake and form particles. The residual materials on the filter cloth can be removed by blowing from the nozzle. After all these, solid will be discharged.



FSD Drying Centrifuge Features

  • Multifunction

  • Enclosed and whole sealing process space

  • Full automatic and high effective CIP system

  • High effective back flush drying

  • Components adopt standard module which is convenient for upgrade

  • Vacuum drying

  • Flexible process control

  • Sampling from whole sealing process space

  • Inspect process area

  • Full process inspection of material temperature


FSD Centrifugal Dryer Highlights

01.
One apparatus among FSD centrifugal dryer machine
02.
No cross contamination
03.
High containment
04.
Total discharge
05.
Drying Centrifuge operation in versatile applications due to high process flexibility
06.
High reliability
07.
Compact design
08.
Sterile design
09.
Online monitoring
10.
No particle destruction
11.
High process flexibility within FSD centrifugal drying machine
