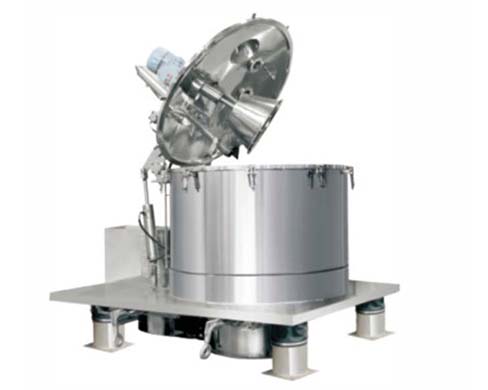

LGZ Automatic Scraper Bottom Discharge Centrifuge

Name: LGZ Automatic Scraper Bottom Discharge Centrifuge
Brand: JIANGSU SAIDELI PHARMACEUTICAL MACHINERY CO.,LTD.

The LGZ bottom discharge centrifuge is a fully automatic, high-tech inustrial centrifuge designed for solid-liquid separation processes. In accordance with users' demand, L(P)GZ bottom discharge centrifuges' procedures such as feeding, separating, washing, dehydrating, and discharging can all be automatically finished followed by remote control. These bottom discharge centrifuge machines are widely used in industries such as pharmaceuticals, fine chemicals, food processing, and environmental engineering, due to their efficiency, reliability, and versatility.

Get Centrifuge Machine Price Now

PDF Download

SCROLL DOWN

LGZ AUTOMATIC SCRAPER BOTTOM DISCHARGE CENTRIFUGE WORKING VIDEO

Highlights of LGZ Automatic Scraper Bottom Discharge Centrifuge

                            01.

                            The bottom discharge centrifuge adopts whole enclosed structure with dependable seal facility which is filled with nitrogen to meet the explosion proof demand.

                            02.

                            Adopted with quick open clamshell structure and optional swash plate distributor, products can be distributed evenly to reduce vibration caused by unbalanced distribution. With additional washing function, it has a better cleaning effect.

                            03.

                            The motor is set on the top of the bottom discharge centrifuge machine and directly linked to main shaft which will bring higher transmission efficiency and reduce friction powders.

                            04.

                            Pneumatic assisted scraper is adopted to remove the remnant filter cake and CIP system is optional to secure clarity to be in accordance with GMP Norm.

                            05.

                            Frequency control system is adopted to ensure a stable start-up. PLC is adopted to ensure a complete automatic process including feeding, filtering, washing and discharging, etc. It adopts dynamic(regenerative) braking without friction powder pollution and friction heat, so it's much safer.

                            06.

                            No need of human supervision. Following security systems of bottom discharge centrifuge are adopted: self-monitoring and protecting system, speed inspection, product level detection, over-vibration protection, over-heat protection for motor, mechanical and electric double interlock for scraper rotary and movement, interlock for lid's open and machine's running.

Other Recommended Industrial Centrifuge Machines

LB Platform Hermetical Top Discharge Centrifuge

LBF Platform Hermetical Full Housing Open Top Discharge Centrifuge

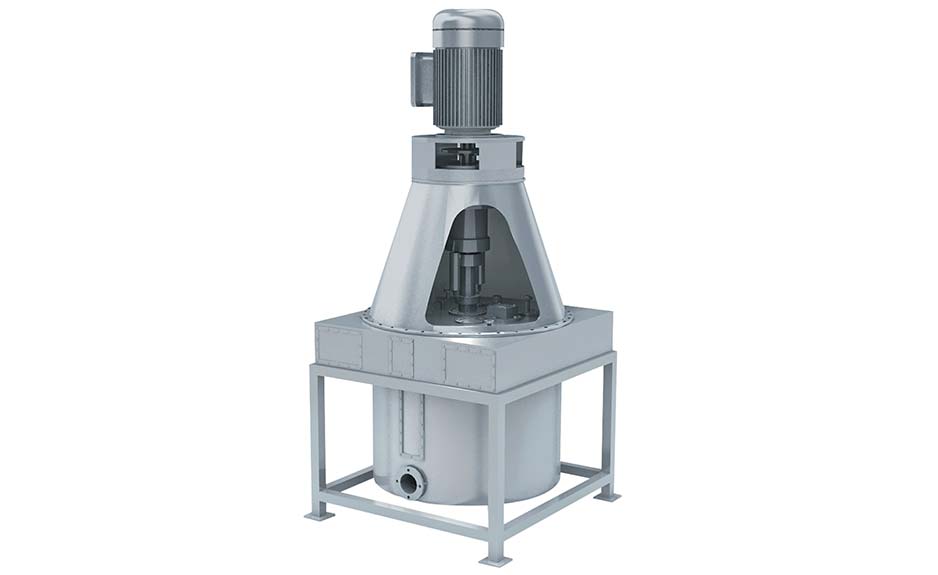

XJZ Top Suspended Centrifuge
